DM4-8 BS | up to 13 l/min (3.4 GPM)
Technical Data
| • Linear Flow Range*: | 0.95 l/min to 12 l/min (0.25 GPM to 3.2 GPM) |
| • Extended Flow Range*: | 0.1 l/min to 13 l/min (0.03 GPM to 3.4 GPM) |
| • Operating Pressure: | up to 34 bar |
| • Pressure Loss (at 70% linear flow): | 0.19 bar |
| • Temperature Range: | -270°C to 400°C (-454°F to 752°F) |
| • Response Time: | <3 ms |
| • Calibration Accuracy: | ≤±0.03% of measurement |
| • Repeatability: | ≤±0.05% of measurement |
| • Linearity in Linear Flow Range: | ≤±0.5% of measurement |
| • Linearity with Linearizer: | ≤±0.1% of measurement |
| • K-Factor: | 8,700 Impulse/l |
| • Max. Frequency: | 1,950 Hz |
| • Housing and Turbine Material: | Stainless Steel |
| • Ball Bearing Material: | Ceramic bearings, Steel cage |
| • Weight: | 70 g |

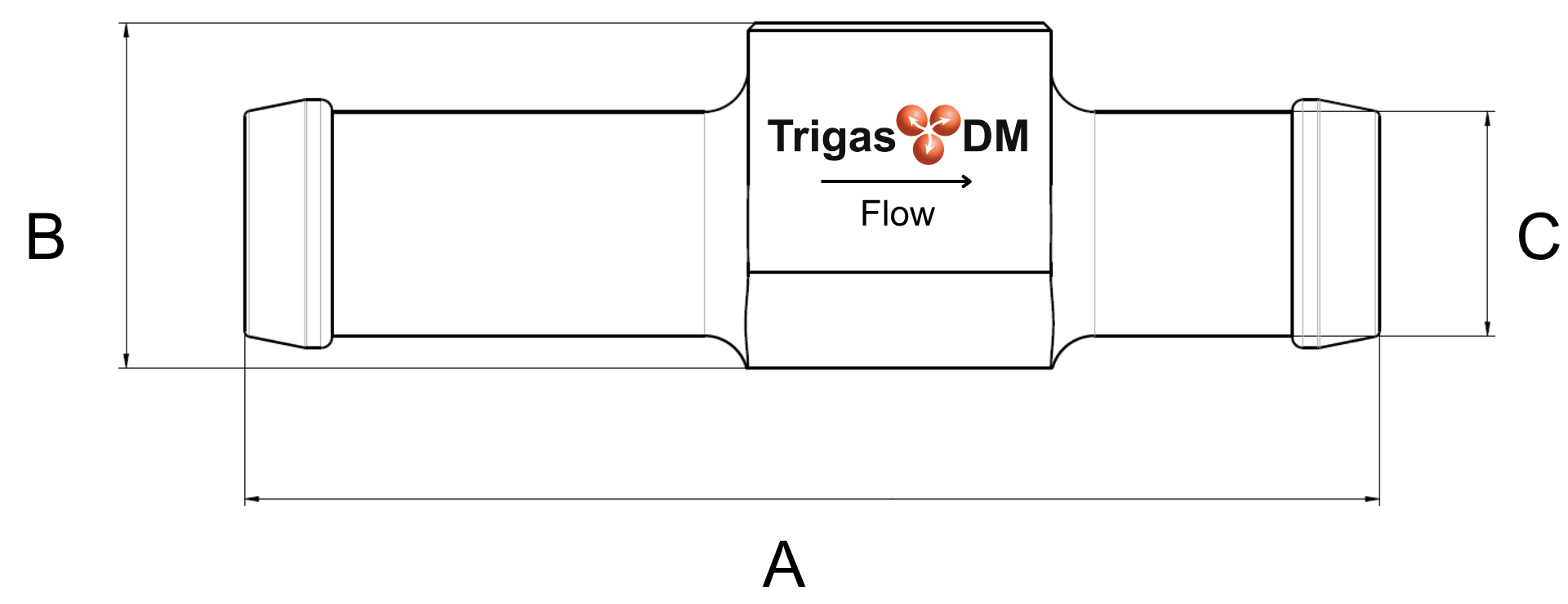

| • Inner Diameter: | 7.6 mm |
| • Length: | 62.2 mm |
| • Connection: | BS balano connection |
| • Connection Size: | ½“ |
| • Recommended Prefiltration: | 10µ |
| • Recommended Inlet: | 76 mm |
| • Recommended Outlet: | 38 mm |
*Standard viscosity: 1,3 mm²/s
Item number: 101179
