DM-40 HS-K | up to 1.700 l/min (449 GPM)
Technical Data
| • Linear Flow Range*: | 151 l/min to 1,510 l/min (39.9 GPM to 398,9 GPM) |
| • Extended Flow Range*: | 17 l/min to 1,700 l/min (4,5 GPM to 449 GPM) |
| • Operating Pressure: | up to 34 bar depending on mating hose and clamp |
| • Pressure Loss (at 70% linear flow): | 0,40 bar |
| • Temperature Range: | -270°C to 400°C (-454°F to 752°F) |
| • Response Time: | <3 ms |
| • Calibration Accuracy: | ≤±0.03% of measurement |
| • Repeatability: | ≤±0.05% of measurement |
| • Linearity in Linear Flow Range: | ≤±0.5% of measurement |
| • Linearity with Linearizer: | ≤±0.1% of measurement |
| • K-Factor: | 48 Impulse/l |
| • Max. Frequency: | 1,200 Hz |
| • Housing and Turbine Material: | Stainless Steel |
| • Ball Bearing Material: | Ceramic bearings, Steel cage |
| • Weight: | 1,210 g |

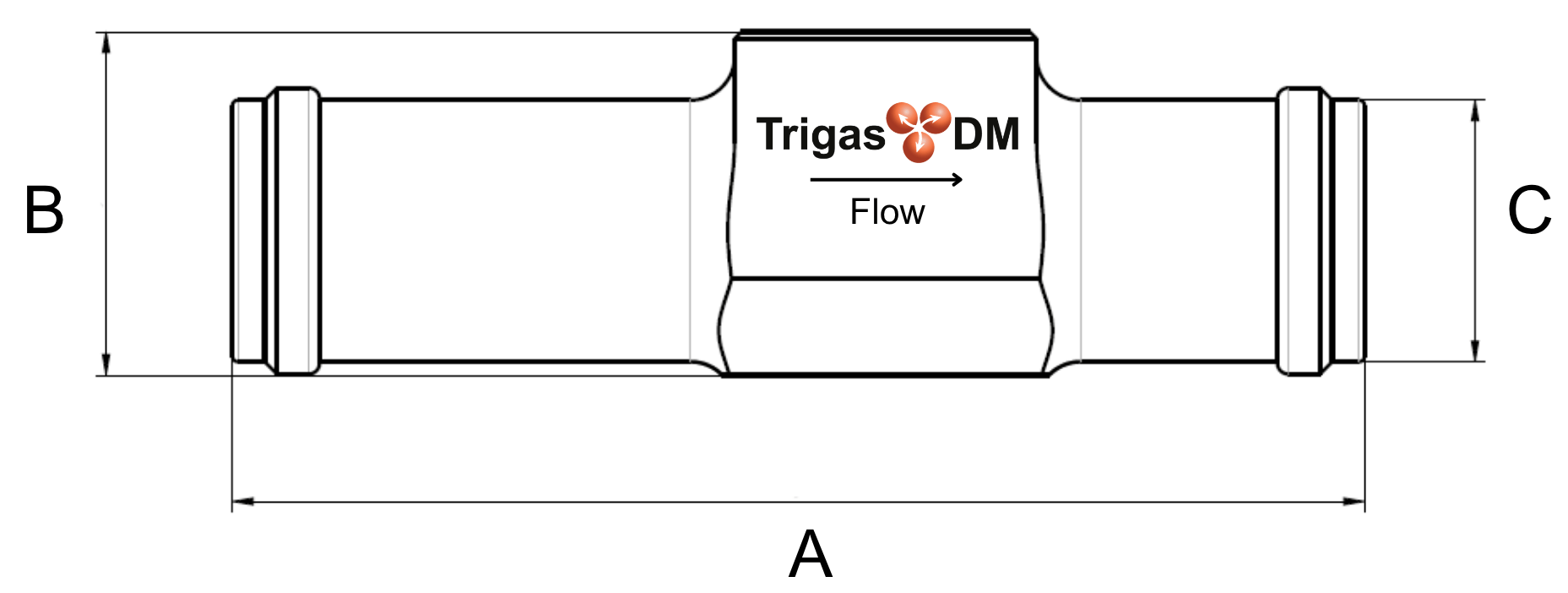

| • Inner Diameter: | 59,7 mm |
| • Length: | 128 mm |
| • Connection: | HS-K hose connection |
| • Connection size: | 2,52″ |
| • Recommended Prefiltration: | 50µ |
| • Recommended Inlet: | 597 mm |
| • Recommended Outlet: | 299 mm |
*Standard viscosity: 1.3 mm²/s
Item number: 101321
