DM6-8 HS-K | up to 24 l/min (6.3 GPM)
Technical Data
| • Linear Flow Range*: | 1.9 l/min to 20 l/min (0.5 GPM to 5.3 GPM) |
| • Extended Flow Range*: | 0.2 l/min to 24 l/min (0.05 GPM to 6.3 GPM) |
| • Operating Pressure: | up to 34 bar depending on mating hose and clamp |
| • Pressure Loss (at 70% linear flow): | 0.16 bar |
| • Temperature Range: | -270°C to 400°C (-454°F to 752°F) |
| • Response Time: | <3 ms |
| • Calibration Accuracy: | ≤±0.03% of measurement |
| • Repeatability: | ≤±0.05% of measurement |
| • Linearity in Linear Flow Range: | ≤±0.5% of measurement |
| • Linearity with Linearizer: | ≤±0.1% of measurement |
| • K-Factor: | 4,860 Impulse/l |
| • Max. Frequency: | 2,000 Hz |
| • Housing and Turbine Material: | Stainless Steel |
| • Ball Bearing Material: | Ceramic bearings, Steel cage |
| • Weight: | 50 g |

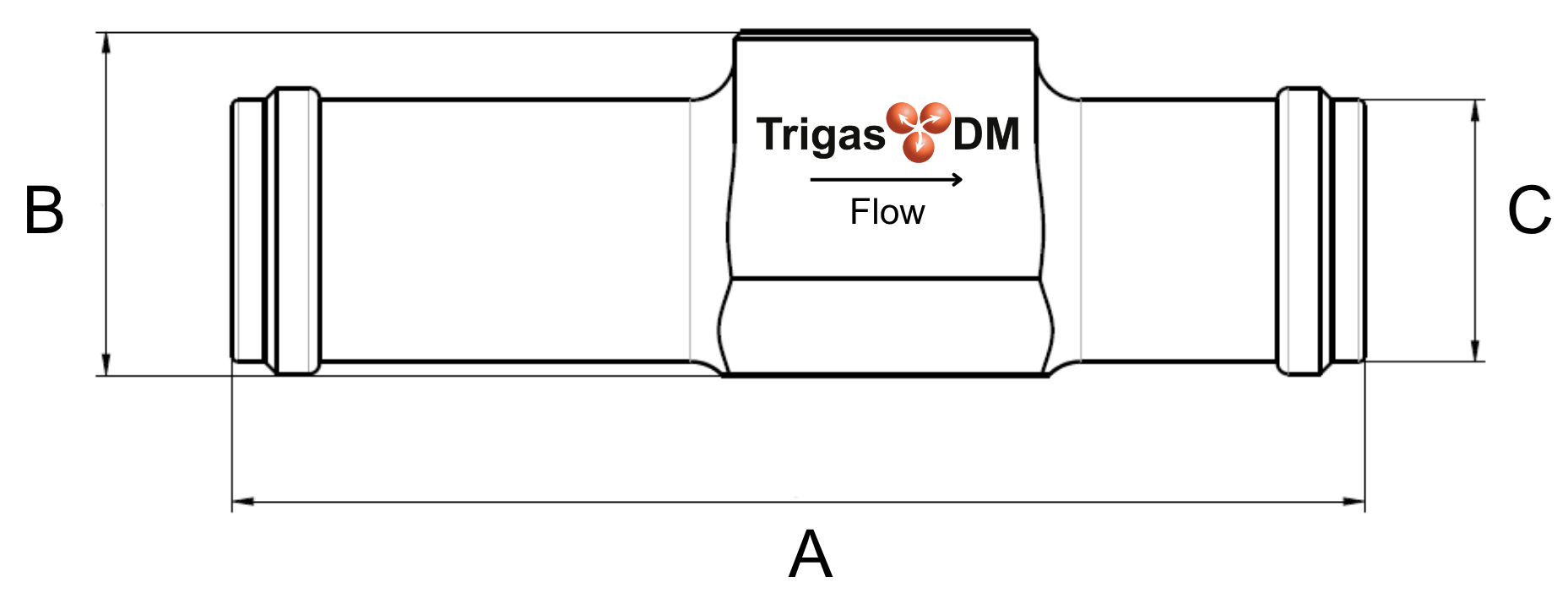

| • Inner Diameter: | 9.4 mm |
| • Length: | 56.2 mm |
| • Connection: | HS-K hose connection |
| • Connection size: | 0.50“ |
| • Recommended Prefiltration: | 10µ |
| • Recommended Inlet: | 94 mm |
| • Recommended Outlet: | 47 mm |
*Standard viscosity: 1.3 mm²/s
Item number: 101181
