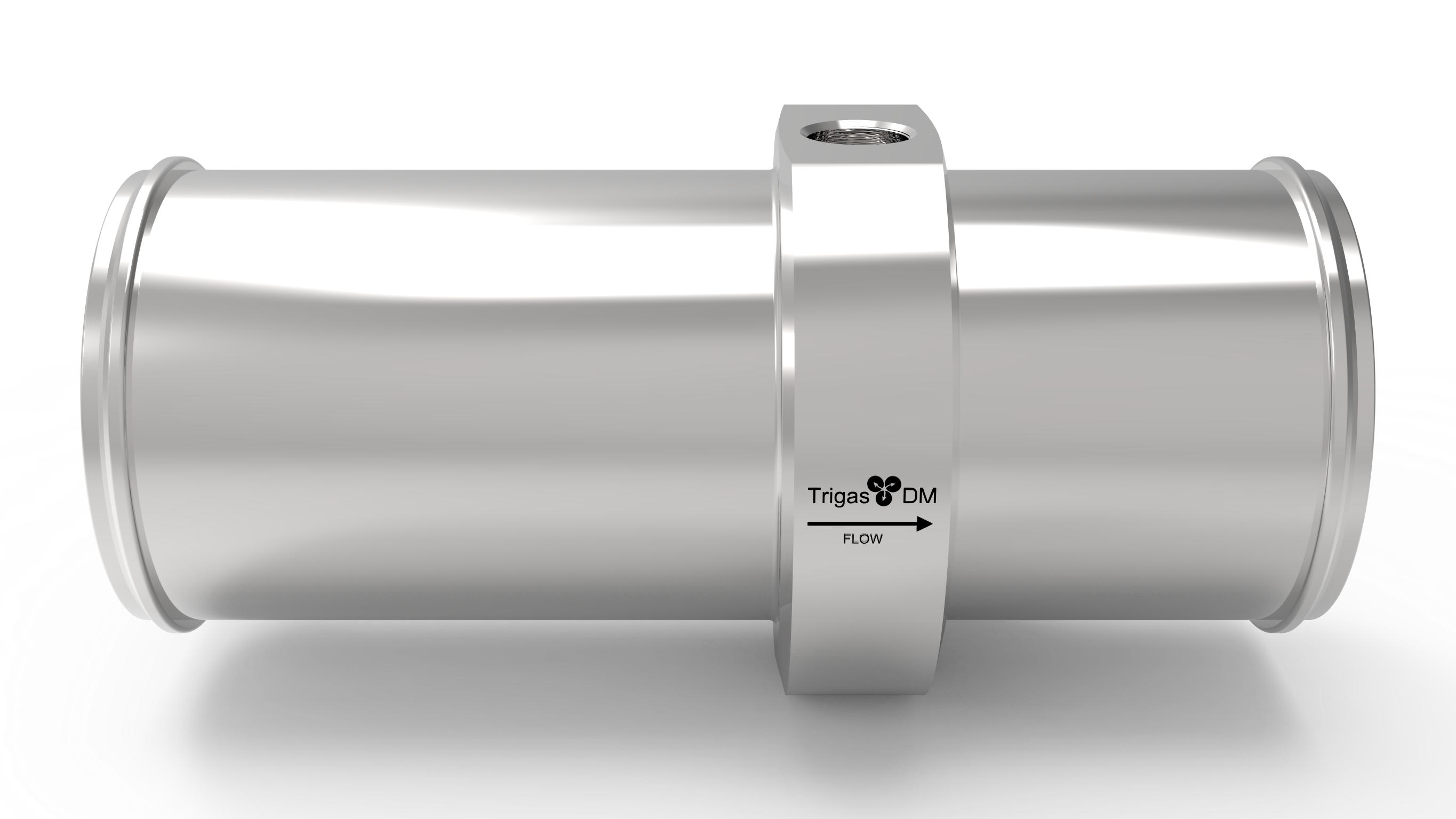

DM-40 HS-L | up to 1.700 l/min (449 GPM)
Technische Daten
| • Linear Flow Range*: | 151 l/min to 1510 l/min (39.9 GPM to 398,9 GPM) |
| • Extended Flow Range*: | 17 l/min to 1700 l/min (4,5 GPM to 449 GPM) |
| • Operating Pressure: | N/A |
| • Pressure Loss (at 70% linear flow): | 0,40 bar |
| • Temperature Range: | -270°C to 400°C (-454°F to 752°F) |
| • Response Time: | <3 ms |
| • Calibration Accuracy: | ≤±0,03% of measurement |
| • Repeatability: | ≤±0,05% of measurement |
| • Linearity in Linear Flow Range: | ≤±0,5% of measurement |
| • Linearity with Linearizer: | ≤±0,1% of measurement |
| • K-Factor: | 28 Impulse/l |
| • Max. Frequency: | 800 Hz |
| • Housing and Turbine Material: | Stainless Steel |
| • Ball Bearing Material: | Ceramic bearings, Steel cage |
| • Weight: | 1289 g |
| • Inner Diameter: | 59,7 mm |
| • Length: | 154,5 mm |
| • Connection: | HS-L hose connection |
| • Connection size: | 2,52″ |
| • Recommended Prefiltration: | 50µ |
| • Recommended Inlet: | 598 mm |
| • Recommended Outlet: | 299 mm |
*Standard viscosity: 1,3 mm²/s
